Getting started on Windows with Visual Studio and Astah

This section guides you through the whole development process from designing a state machine to integrating it into an application. This will help you to get familiar with the code generator and its features.

All files for this tutorial are available in this folder: examples/microwave_visual_studio_c and available here as zip file.

A Microwave Oven

In this section we create the model of a simple microwave oven using a state machine diagram. A microwave oven was chosen because it is self-explanatory and not too complex to model. To keep this example as simple and clear as possible the hardware interaction routines are excluded. The following figure 1 shows the hardware of our fictitious microwave oven. For this example we are using Altova UModel. In the handbook you will find hints on how to draw state diagrams for all the supported tools. It is recommended to have a quick look into that section.

Microwave Oven Image Figure 1: Simplified microwave oven. With a wheel the cooking time can be adjusted between 0 – 60 seconds. The power can be set to high (II) or low (I).

The oven controller should be able do the following things:

  1. Cooking time can be adjusted using a wheel between 0s and 60s.
  2. Cooking starts if the cooking time is larger than zero. And the door is closed.
  3. If the door is opened during cooking the microwave generator is switched off. Cooking time stops.
  4. Cooking continuous if the cooking time is not over and the door is closed again
  5. Cooking stops if the cooking time is over or the time is adjusted to zero.
  6. Cooking time and power can be changed at any time.

Drawing the State Machine Diagram

To fulfil the requirements a hierarchical state machine was designed. Therefore events that should be handled from every state must only be modelled once on the outer (parent) state.

This example shows several UML state machine elements that make up a state machine. It is enough to generate production ready code out of it. Please note that the design presented here is not the only possible solution for the given requirements. Also some functions of a real microwave oven – e.g. control of a lamp in the oven – are still missing.

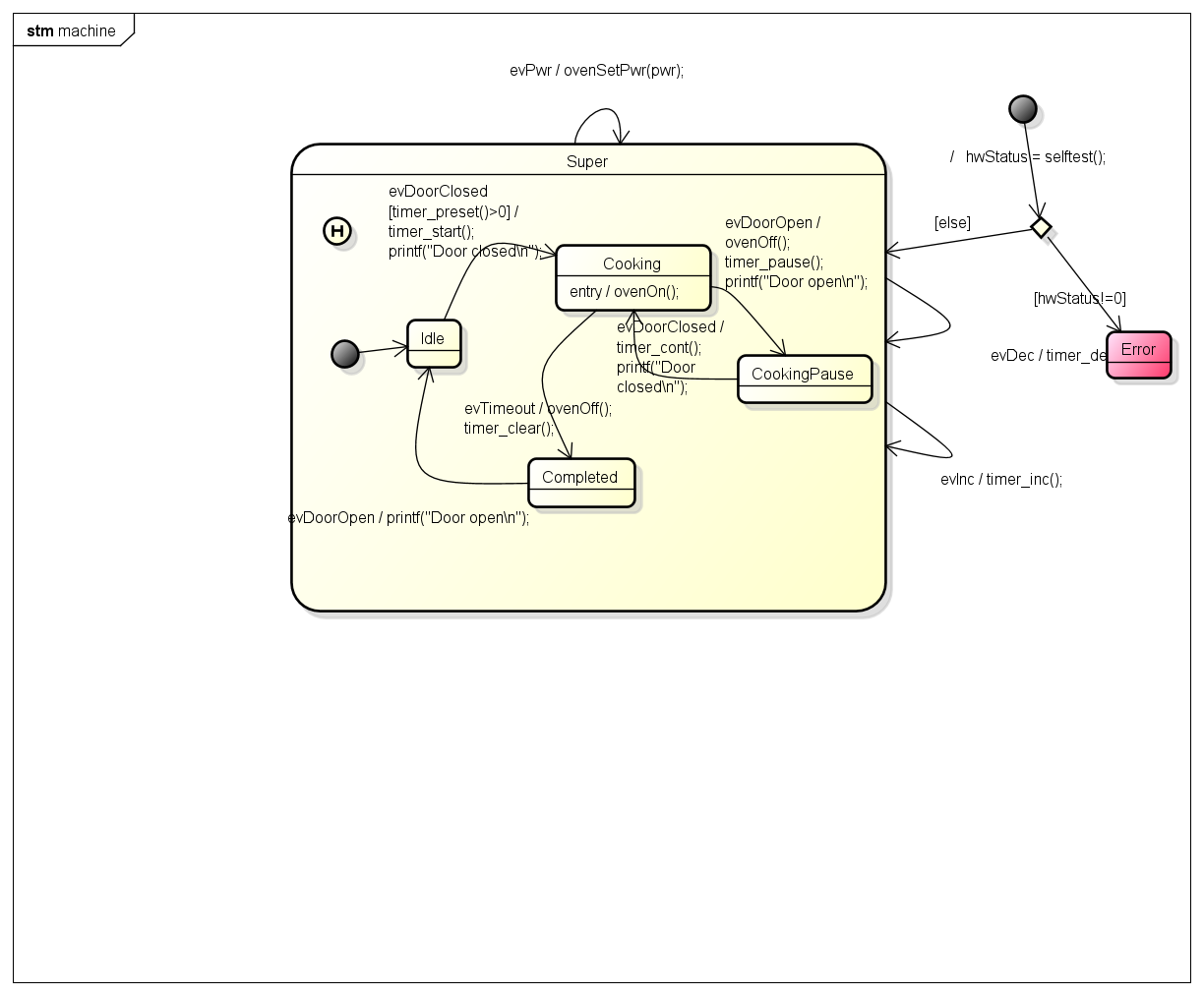

Figure 2: Complete state machine design of the microwave oven. All necessary actions, guards, entry and exit code were added. The model was created with Astah. It is running on Windows and MacOS.

Creating Code

It is assumed you have Java and the Visual Studio installed on your PC. For a check whether everything is installed correctly open a command window and change the working directory to this folder. Then type in the following commands.

C:\>java −version
java -version
java version "13.0.2" 2020-01-14
Java(TM) SE Runtime Environment (build 13.0.2+8)
Java HotSpot(TM) 64-Bit Server VM (build 13.0.2+8, mixed mode, sharing)

Your output should look similar. Details might differ depending on your installed java versions. Now change to the ready made example in the examples folder. Depending on your installation change to the following examples folder:

cd "your path\sinelaboreRT4.3\examples\microwave_visual_studio_c"

To recreate the code open a command window and start the generation batch file. Check whether the paths inside the script are ok for your installation. Most probably you have to adjust one or the other path. Your output should be similar:

Verbose mode on
Command line parsing success!
Parsing successfully finished.
Checking nodes ...
Checking for unique node names
Merging actions TestMicrowave and TestLamp
Merging actions bdc3d21b_a5c3_4ec5_b4b1_e9fd41b68d98 and TestSomethingElse
Verbose mode on
Command line parsing success!
Open project: oven_model.asta
Starting robustness tests of state machine ...
State names: ..............
Machine hierarchy: ........
Machine height = 2
Transitions: ..............
Default states: ...........
Final states: .............
Choices: ..................
No. of children in composites: ...
Connectivity of states: ...
M1054: State Error has no outgoing transitions which indicates a dead end -> check your design.
Can't find the License.txt file or invalid file. Codegen is running in demo mode
Expected license file location: /C:/sinelaboreRT4.3/bin/License.txt
Running in demo mode!

Double click on the sln file to load the project with Visual Studio. It is a C++ console project. The files generated from the UML state machine and the activity diagram are all stored in the folder called generated. A simulation of a timer and the microwave hardware is provided in helpers folder.

Next compile the solution in Visual Studio. There should be no compile errors.

Figure 3: Visual Studio Console Project. The batch file is used to create the code from the UML models.

The oven exe should be built successfully now. Start the program and type several times + to increment the cooking timer. Then press c to close the door. Watch what happens. Test the other events you can fire.

It is now recommended to start your UML editor again. And play with the state diagram. Look into the generated code to get familiar with the many possibilities the code generator offers.

Figure 4: Executing the built oven simulation.

Some additional notes:

  • The code generator can also generate code from activity diagrams. The example also contains an activity diagram for the self test algorithm (basic, just as example).
